4 1000M Poe Ports 1 1000M RJ45 Uplink Port DC48V 5 Port 10 Gigabit Switch

Product Categories

HiOSO Technology Co., Ltd.

Contact Now

Name: 4 1000M Poe Ports 1 1000M RJ45 Uplink Port DC48V 5 Port 10 Gigabit Switch
Brand: Hioso
Price: 1 USD

Brand Name : Hioso

Model Number : Foway2505P

Certification : CE, RoHS, CCC

Place of Origin : China, Guang dong

MOQ : 1

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 5000 pcs/month

Delivery Time : 3-11 working days

Packaging Details : 38X24X18 CM

Name : Poe Switch

Ports : 5 1000M ports

Distance : CAT5: 100M

Error rate : <1/1000000000

Power : DC48V

Consumption : 5W

Contact Now

Poe Switch 4 1000M Poe Ports + 1 1000M RJ45 Uplink Port Gigabit 5 Ports Switch

Character

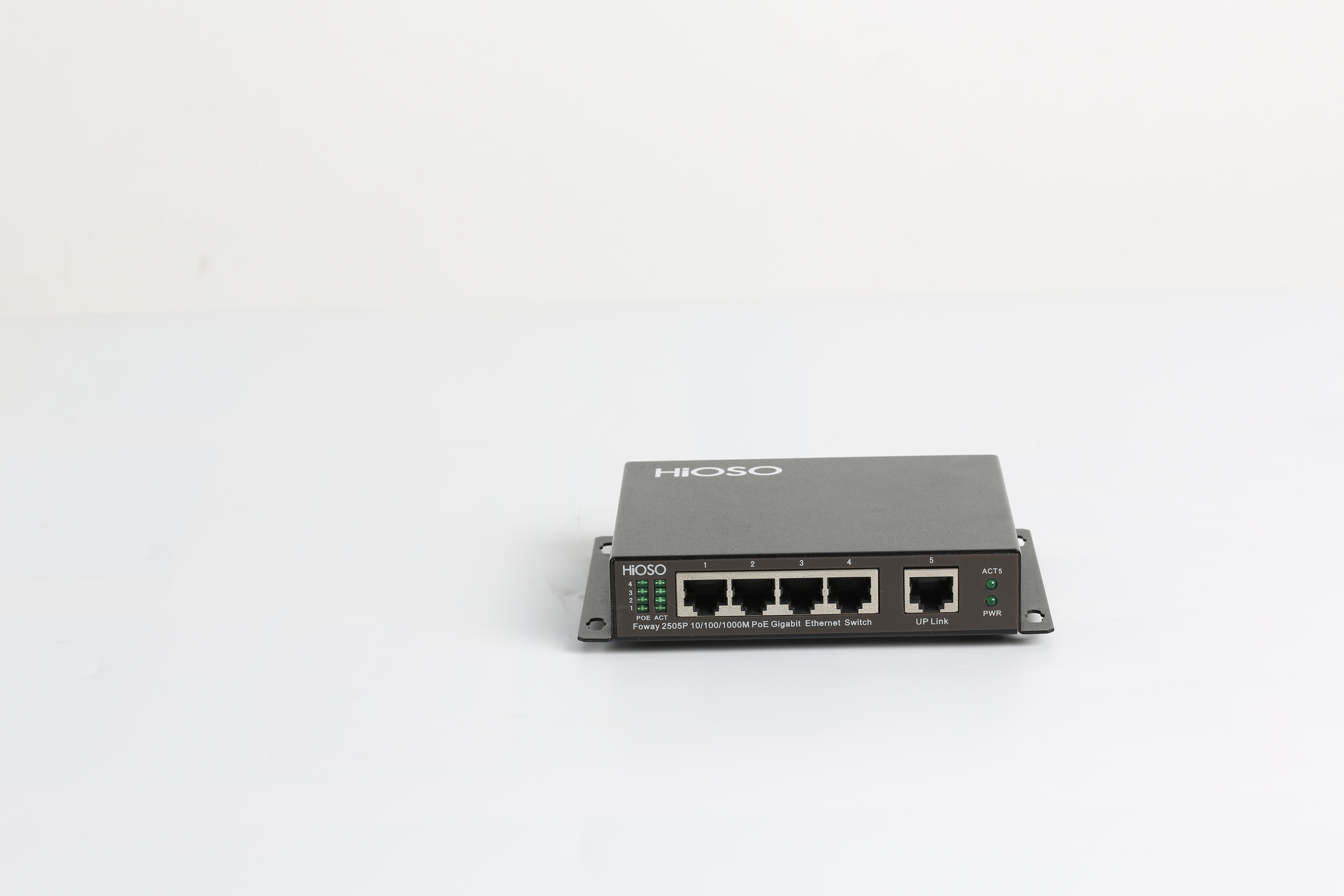

Support 4 10/100/1000M RJ45 PoE ports and 1 10/100/1000M RJ45 uplink port
Each PoE port supports auto detect the powered device
Support IEEE802.3af 15.4W and IEEE802.3at 30W PoE standards
Support each port full rate, full-duplex non-blocking forwarding
Support WEB management and SNMP (optional)
Support 1K (8K optional) MAC learning, 1Mbit storage and forward cache space
Each RJ45 port adopts anti-high voltage circuit, strengthen the lightning protection and anti-interference ability
Supply redundant dual power input ports, enhance reliability
Metal casing with Wall mounting design , better for heat dissipating and installation

Parameter	Specification
Standard	IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX Fast Ethernet,IEEE802.3ab 1000Base-T Gigabit Ethernet, IEEE802.3x Flow control,IEEE802.1q VLAN, IEEE802.1p QoS, IEEE802.1d Spanning Tree, IEEE802.3af,IEEE802.3at
PoE	4 PoE/PSE ports, support IEEE802.3af 15.4W / IEEE802.3at 30W Working mode:auto detect powered device,stop powering if not PD device
Transmission distance	CAT5: 100M
Ports	4 10/100/1000M RJ45 ports (POE/PSE): 10/100/1000Mbs 1 10/100/1000M RJ45 uplink port: 10/100/1000Mbps
MAC	1K (8K optional)
Buffer memory space	1Mbit
Bit error rate	<1/1000000000
MTBF	100000 hours

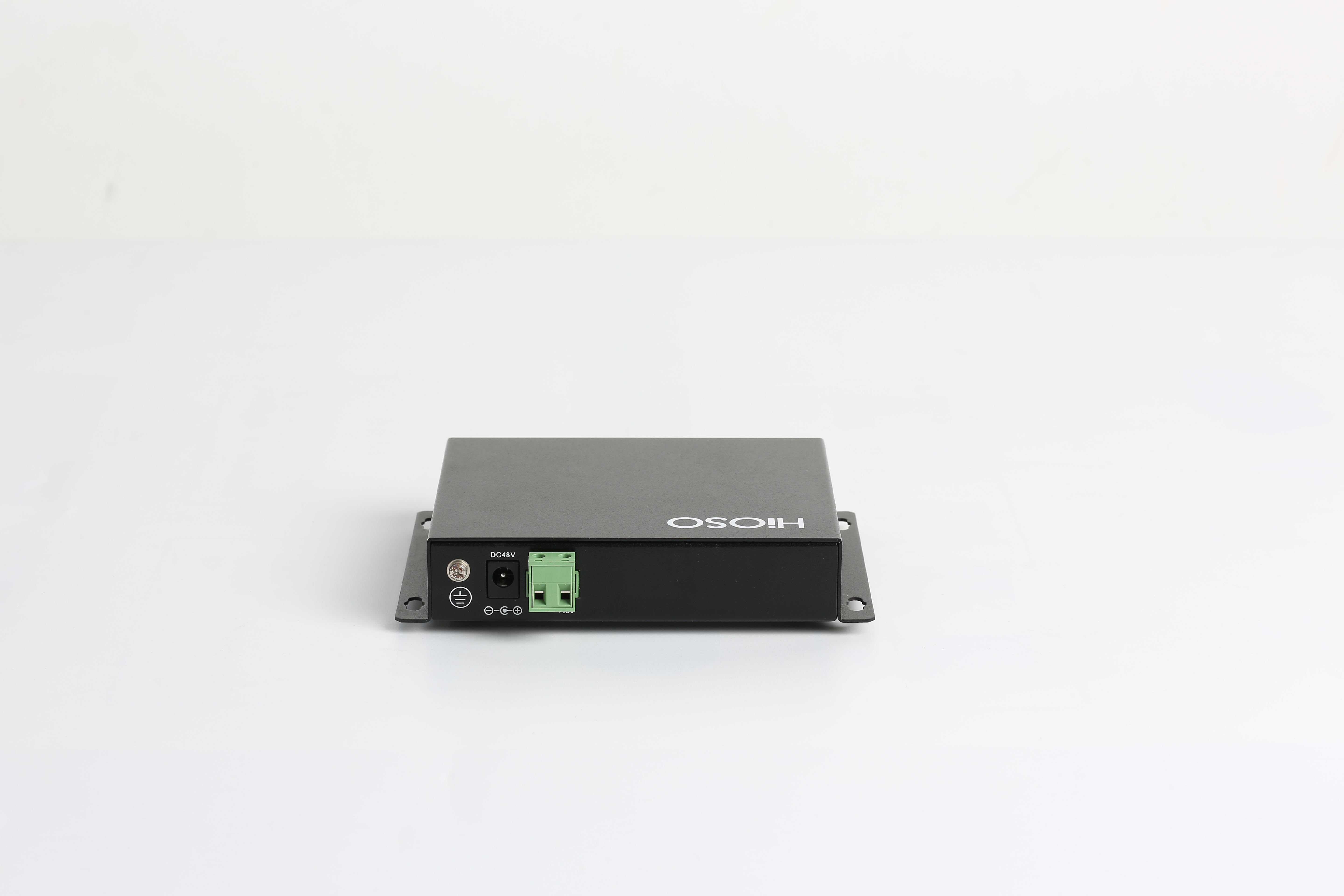

Power	DC48V dual input redundant backup
Power consumption	Whole device:5W POE/PSE: maximum120W
Working temperature	Common:-10~60℃; -T (wide temperature range):-40~75℃
Storage temperature	-40~80℃
Humidity	5%~90% non-condensing
Installation	Wall mounting type
Dimension	26mm (H)×140mm(W)×106mm (D)

4 1000M Poe Ports 1 1000M RJ45 Uplink Port DC48V 5 Port 10 Gigabit Switch
